Description and Applications

Sandwich panel for façades with mineral wool core.

Highly customisable panel, with three types of core density (LL LD, LL HD or LL HD STD), sheet thicknesses between 0.5 and 0.6 mm, various profiling options, etc.

Technical Characteristics

Tongue-and-Groove Joint

Double tongue-and-groove joint, with deep interlocking lips and easy installation.

La entrada Integral Roc façade panel se publicó primero en Teczone.

Description and Applications

Insulating panel with mineral wool core for fire compartimentation.

Highly customisable panel, with three types of core (LL LD, LL HD or LL HD STD), sheet thicknesses between 0.5 and 0.8 mm, various profiling options, etc.

Within the range of panels, the Modulpan Roc model is designed for fire compartmentation applications applications where high fire resistance is required.

See the technical data sheet for all possible certifications by thickness.

Technical Characteristics

Reaction to fire classification

The Modulpan Roc LL (LD, HD and HD STD) range has the reaction to fire classification A2 – s1, d0 according to EN 13501-1:2018 (Euroclasses).

Fire Resistance

The Modulpan Roc panel offers excellent fire performance, providing up to 4 hours of insulation and integrity under fire conditions

(1) Tested according to EN 1364-1:2015, classified according to EN 13501-2:2023. Direct field of application of the test results of the test results of the Modulpan Roc LL HD panel with vertical joint. See installation conditions and EXAP.
(2) Tested under standard EN 1364-2: 2018, classified according to standard EN 13501-2:2023. Direct field application of the test results for the Modulpan Roc LL HD panel with a load-bearing capacity of 0.5 units/m².

La entrada Sectorization Panel Modulpan Roc se publicó primero en Teczone.

Description and Applications

Sandwich roof panel with mineral wool core.

Highly customisable panel, with three types of core (LL LD,
LL HD or LL HD STD), sheet thicknesses of 0.5 or 0.6 mm,
and profiled (standard) or flat finish.

Cubigrec Roc is available with a fire resistance certificate
of up to 120 minutes (REI 120) without the need for additional sealing at the joints for panels with an LL HD core, 80 or 100 mm thick. Please refer to this document
for all possible classifications by panel thickness.

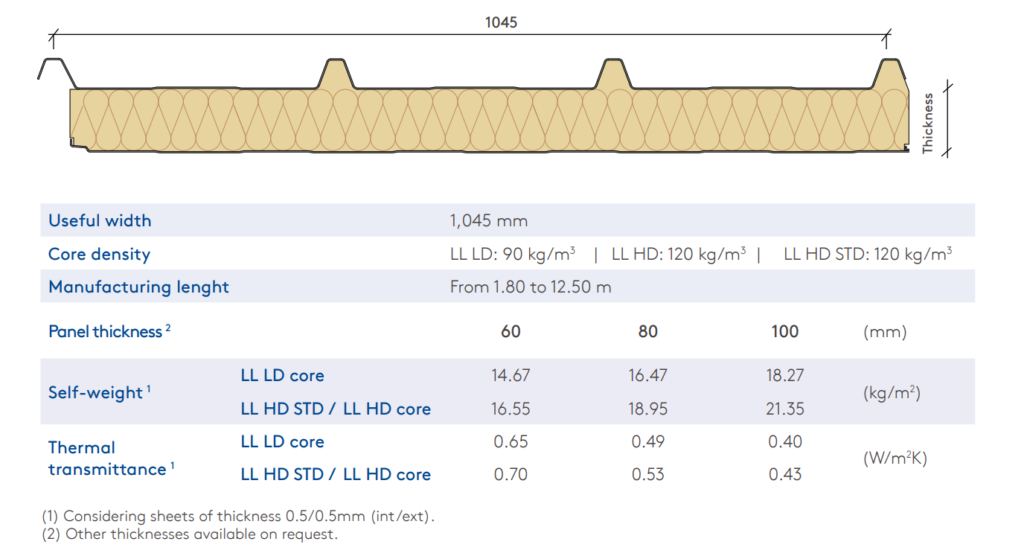

Technical Features

Reaction-to-fire classification

The Cubigrec Roc LL (LD, HD and HD STD) panel has the reaction to fire classification A2 – s1, d0 according to EN 13501-1:2018 (Euroclasses). Test carried out with perimeter profile. In the case of external reaction to fire, the Cubigrec Roc LL (LD, HD and HD STD) panel has the classification Broof (t1), Broof (t2), Broof (t3)* according to Decision 2006/600/CE.

*At each transverse joint between two panels, the overlap of the external metal cladding must be a minimum of 75 mm.

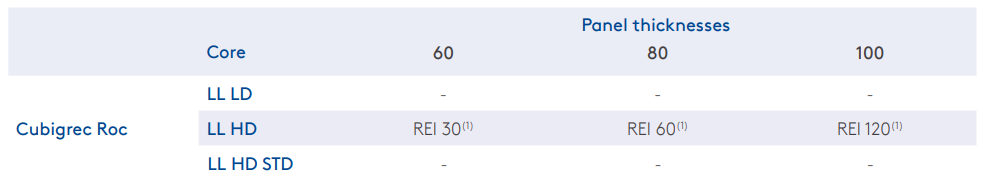

Fire resistance

The Cubigrec Roc LL HD panel offers a very good fire performance with a fire resistance of up to 120 minutes of insulation and integrity without the need for additional sealing at the joint. Please consult our technical department for more information.

(1) Tested in accordance with standard EN 1365-2:2014, classified in accordance with standard EN 13501-2:2023. Direct scope of application of the test results for the Cubigrec Roc LL HD panel with 0.5 mm steel sheets. See installation conditions.

La entrada Cubigrec Roc roof panel se publicó primero en Teczone.

Description and Applications

Sandwich panel for roofs with rigid insulation core and
outer faces of structural steel profiled sheet.

High insulation performance and ensured water tightness,
thanks to its tongue-and-groove joint design and the
continuous top flashing that hides the fixing screw.

PIR (polyisocyanurate) foam is used as insulating core.

Available in different steel thicknesses, coatings and
colours.

Thermal-efficient roofs with high aesthetic value and fast
execution for industrial, commercial, agricultural and
public buildings.

Reaction to fire

TZ-C PIR panel:

Euroclass B-s1,d0* + BRoof (t1)-Roof fire.

The reaction to fire has been determined by means of laboratory tests (standard UNE-EN 13501-1:2019).

The TZ-C panel with PIR insulation core has obtained the best possible classification for an organic material (hardly combustible product with very little contribution of smoke and no production of flammable droplets).

(*) Tested under the name ‘PANEL TZ-C’

La entrada TZ-C roof panel se publicó primero en Teczone.

Description and Applications

Sandwich panel with steel faces and rigid, insulating
core.

Thanks to its hidden fixings, it provides a finish with great
architectural value.

Available in four different finishes and various
thicknesses, coatings and colours.

Insulating facades for industrial, residential, commercial
and sports facilities, as well as for roofs and internal
partitions.

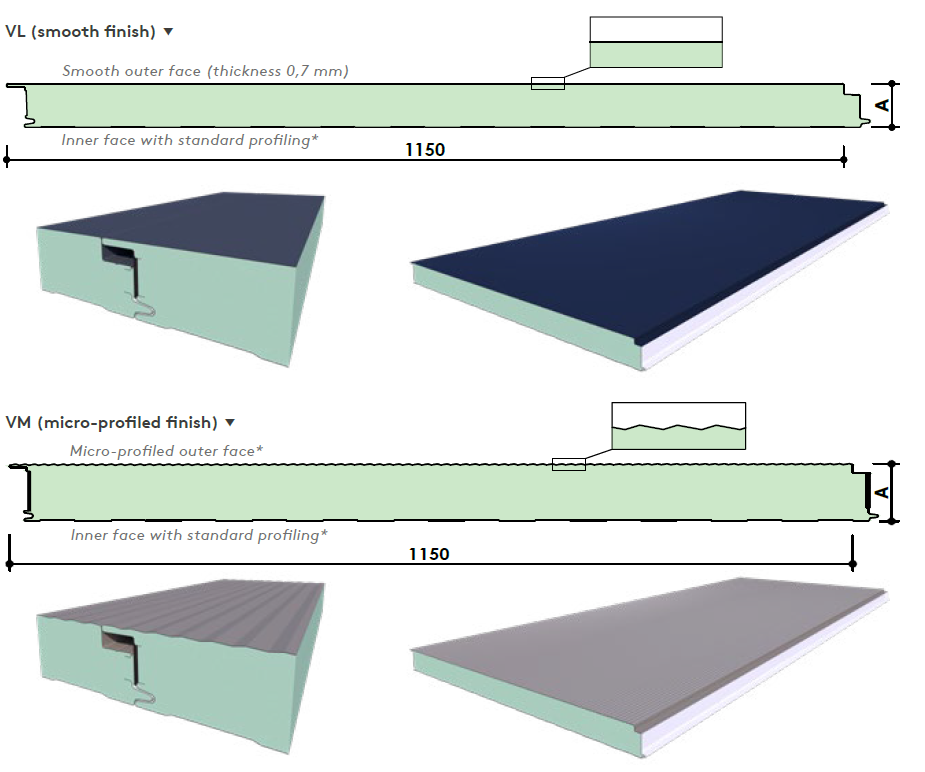

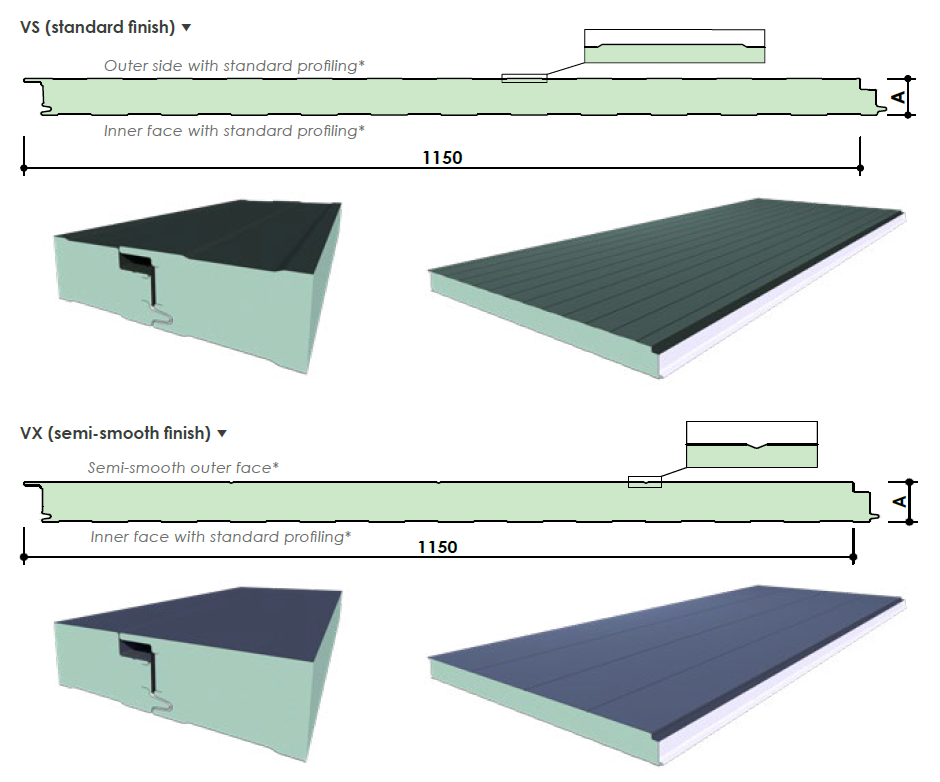

Finishing options
