Description and Applications

Skylight panel made of cellular polycarbonate with
hidden fastening, protection from UV light and
Euroclass B-s1,d0 fire classification.

With a thickness of 30 mm and a useful width of 1,150
mm it is compatible with any TZ-C panel thickness,
has the same useful width as the panels and follows
their modulation. It is also compatible with all their
accessories.

Natural lighting in sandwich panel enclosures for industrial
and commercial buildings, and sports facilities.

Downloads

TZ-CLIC Skylight Technical Sheet

Download

Declaration of Performance – TZ-CLIC

Download

Assembly sheet TZ Clic

Download

Características

Thickness 30 mm

Useful width 1.150 mm

Maximum length 34 m

Structure 6 paredes

Standard colour Light opal

Light transmission 39%

Solar factor 0,46

UV protection Cara exterior

Linear expansion 0,065 mm/m ºC

Thermal insulation ,25 W/m2 ºC

Reaction to fire B-s1,d0

La entrada TZ-CLIC se publicó primero en Teczone.

]]> TZ-Vault https://teczone.es/en/product/tz-vault/ Mon, 14 Jul 2025 11:10:00 +0000 https://teczone.es/producto/tz-boveda/ Description and applications Modular cellular polycarbonate skylight, with highprotection against UV rays, high durability, high thermalinsulation, exceptional watertightness and high resistanceto shocks and hail impacts. Its microcell structure transmits natural light uniformlyand, thanks to its modular design with joints usingstiffening omegas, it can be installed with no length limit. The TZ-BOVEDA skylight has been designed […]

La entrada TZ-Vault se publicó primero en Teczone.

]]>

Description and applications

Modular cellular polycarbonate skylight, with high
protection against UV rays, high durability, high thermal
insulation, exceptional watertightness and high resistance
to shocks and hail impacts.

Its microcell structure transmits natural light uniformly
and, thanks to its modular design with joints using
stiffening omegas, it can be installed with no length limit.

The TZ-BOVEDA skylight has been designed to be
modulated with the TZ-C panel, and can be installed both
on the pitches and on the ridge.

Natural lighting in insulating roofs executed with the TZ-C
panel for industrial, residential, commercial buildings and
sports facilities.

Downloads

Technical Data Sheet bóveda skylight

Download

Declaration of Performance – TZ-Bóveda

Download

Características

Espesor estándar 10 mm

Sistema celular Multicell (3 cells – 4 walls)

Ancho panel 600 mm

Temperatura de servicio -40ºC a +120ºC

Resistencia granizo Yes (ASTM E-822-81 test)

Transmisión UV Less than 0,1%

Clasificación al fuego Euroclass B-s1,d0

Coeficiente de dilatación 0,065 mm/mºC (linear)

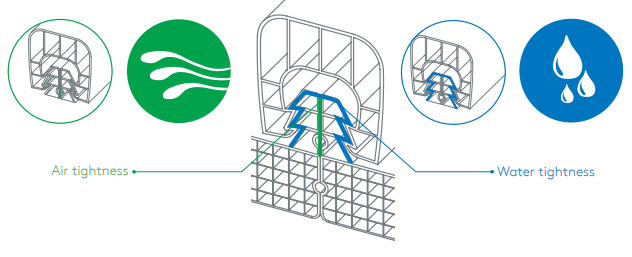

Polycarbonate binding omegas

The boards of the TZ-Boveda skylight are joined together by means of a highly rigid polycarbonate omega, which provides the system with a high load capacity and high resistance to hail impacts.

The exclusive design of the joint between the omega and the plates guarantees maximum air and water tightness.

La entrada TZ-Vault se publicó primero en Teczone.

]]> Polycarbonate Sheet https://teczone.es/en/product/polycarbonate-sheet/ Mon, 14 Jul 2025 08:12:00 +0000 https://teczone.es/producto/placa-policarbonato/ Description and Applications Translucent sheet of compacted polycarbonate. Longlasting sheet with high impact strength and protectionagainst UV light. Available in transparent and opal whitefinishes. Natural lighting in metal roof or façade enclosures forindustrial, commercial and sports installations buildings. Sheets designed to integrate into metal enclosures executed using the range of profiles manufactured byKingspan. Sheet range

La entrada Polycarbonate Sheet se publicó primero en Teczone.

]]>

Description and Applications

Translucent sheet of compacted polycarbonate. Longlasting sheet with high impact strength and protection
against UV light. Available in transparent and opal white
finishes.

Natural lighting in metal roof or façade enclosures for
industrial, commercial and sports installations buildings.

Sheets designed to integrate into metal enclosures executed using the range of profiles manufactured by
Kingspan.

Downloads

Technical Specifications TZ Polycarbonate sheet

Download

Installation and usage manual / Policarbonate sheet

Download

Declaration of Performance – Placa Policarbonato

Download

Sheet range

La entrada Polycarbonate Sheet se publicó primero en Teczone.

]]> Cubigrec Lux https://teczone.es/en/product/cubigrec-lux-2/ Wed, 09 Jul 2025 14:01:00 +0000 https://teczone.es/producto/cubigrec-lux-2/ Description and Applications Modular skylight made of cellular polycarbonate, withhigh UV protection, high durability and high thermal andmechanical properties. Supplied in customised units andlengths on request. Natural lighting from ridge to gutter of insulated roofsmade with the Cubigrec panel for industrial, residential,commercial and sports facilities.

La entrada Cubigrec Lux se publicó primero en Teczone.

]]>

Description and Applications

Modular skylight made of cellular polycarbonate, with
high UV protection, high durability and high thermal and
mechanical properties. Supplied in customised units and
lengths on request.

Natural lighting from ridge to gutter of insulated roofs
made with the Cubigrec panel for industrial, residential,
commercial and sports facilities.

Downloads

Cubigrec Lux Datasheet

Download

Declaration of Performance – Cubigrec Lux 30 mm

Download

Declaration of Performance – Cubigrec Lux 40 mm

Download

Assembly Sheet Cubigrec Lux

Download

Características

Color Blanco opal

Thickness 30 mm | 40 mm

Useful plate width 1.000 mm

Panel length A medida

Light transmission 39%

Thermal insulation 1,22 W/m’K | 1,06 W/m`K

Coef. linear expansion 0,065 mm/mºC

Reaction to fire Euroclase B-s1, d0 (EN 13501-1)

UV protection Recubrimiento cara exterior

Operating temperature -30ºC a 120ºC

Max. distance between supports 2.000 mm

Solar energy transmission (G-value) 45%

CE marking EN 16153-2013 + AI: 2015

La entrada Cubigrec Lux se publicó primero en Teczone.

]]> COMPLET SKYLIGHT https://teczone.es/en/product/complet-skylight/ Wed, 09 Jul 2025 09:56:00 +0000 https://teczone.es/producto/complet-2/ Description and Applications Highly long-lasting cellular polycarbonate modularskylight with high protection against UV light, longlifetime, excellent thermal insulation and very easy toinstall. Designed to mate with the TZ-C panel with a usefulwidth of 573 mm (single-mounting) or 1,150 mm (doublemounting). Natural lighting on TZ-C panel insulating roofs forindustrial, residential and commercial buildings and sportsfacilities. The […]

La entrada COMPLET SKYLIGHT se publicó primero en Teczone.

]]>

Description and Applications

Highly long-lasting cellular polycarbonate modular
skylight with high protection against UV light, long
lifetime, excellent thermal insulation and very easy to
install. Designed to mate with the TZ-C panel with a useful
width of 573 mm (single-mounting) or 1,150 mm (doublemounting).

Natural lighting on TZ-C panel insulating roofs for
industrial, residential and commercial buildings and sports
facilities.

The kit includes the COMPLET 7-wall polycarbonate skylights, the aluminium clips and the required lower joint profiles.

In the case of a double-plaque installation, the aluminium clamps and polycarbonate cover plates are also provided.

Downloads

COMPLET Skylight Technical specifications

Download

Declaration of Performance – Complet

Download

Características

Thickness 30 mm

Module useful width 573 mm

Panel lenght No limit

Range of service temperature -40ºC a +120ºC

Acoustic insulation 21 dB

Thermal insulation 1,30 w/m’ K

Reaction to fire Euroclase B- s1, d0

Linear expansion coefficient 0,065 mm/mºC (lineal)

Components and Installation Options
