MyWall Waves
Description and Applications

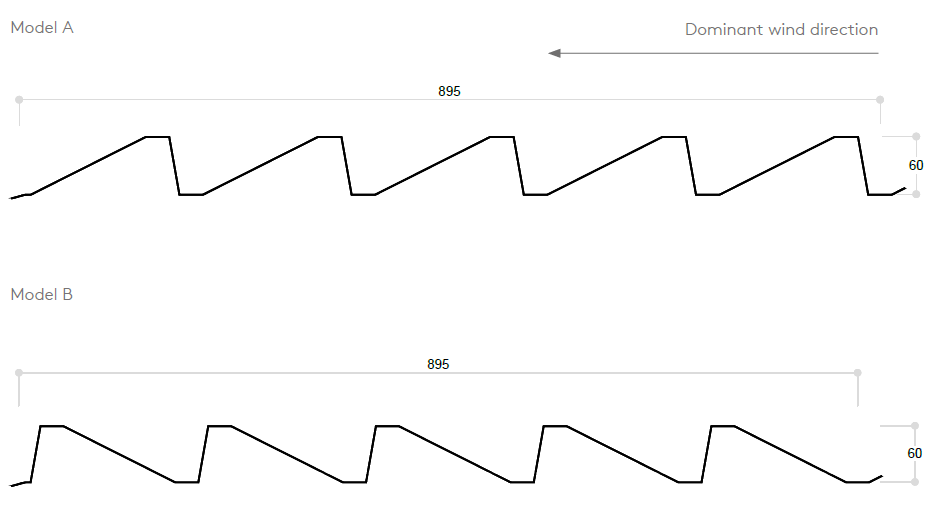

MyWall Waves profiled sheet with 5 ribs, made of hot-dip galvanized structural steel, ideal for architectural façades in industrial, commercial and sports buildings. Effective width: 895 mm. Available in lengths up to 8,000 mm.
High quality structural steel
Manufactured with hot-dip galvanized structural steel plate S220GD, 0.6 or 0.7 mm thick(*), MyWall profiles are very efficient at a structural level, allowing to cover a wide range of loads and spans between supports.
(*) Other steel qualities and thicknesses upon request.
Downloads
Colours and Coatings
MyWall profiles can be manufactured in an extensive colour palette and with a wide range of high-durability coatings, selectable according to the environmental aggressiveness of the building site.
Architectural Modular System
The new MyWall system by Teczone Kingspan offers exceptional technical performance at an optimised cost for the execution of metal envelopes with excellent architectural finish.
MyWall metal profiles feature ribs of diverse shapes and rhythms (symmetrical triangular ribs, flattened ribs, asymmetrical triangular ribs, square ribs) and allow combining different rib geometries in a single profile.
The MyWall profile manufacturing system enables a high degree of customisation in terms of the number of ribs, their geometry, and their position on the profile.
This geometric flexibility, together with a wide range of available colours and coatings, provides architects, designers, and technical professionals with exceptional creative freedom in the design of metal building envelopes.
