MyWall Galaxy
Description and applications

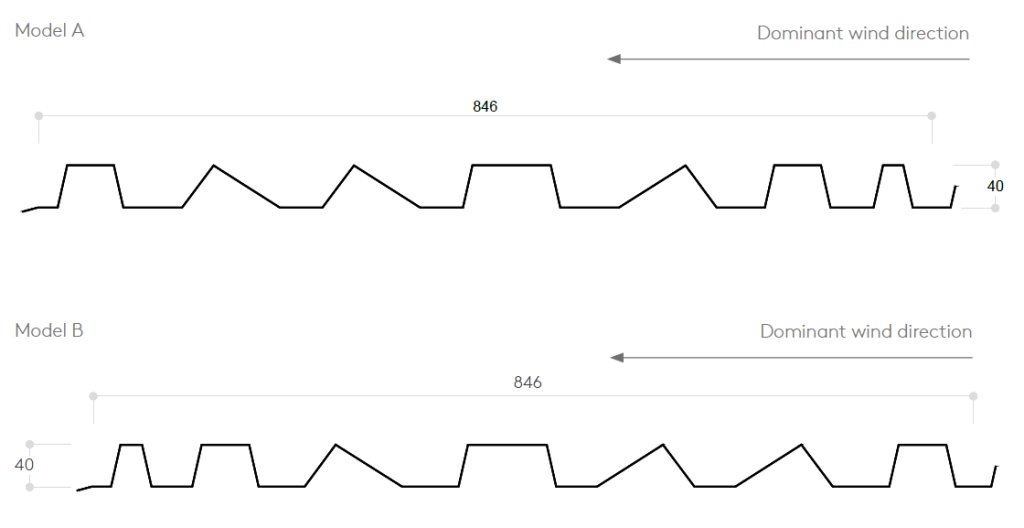

MyWall Galaxy 7-rib ribbed profile in hot-dip galvanised structural steel sheet, ideal for architectural façades in industrial, commercial and sports buildings, with a usable width of 846 mm and lengths of up to 8,000 mm.
High quality structural steel
Manufactured with hot-dip galvanized structural steel plate S220GD, 0.6 or 0.7 mm thick(*), MyWall profiles are very efficient at a structural level, allowing to cover a wide range of loads and spans between supports.
(*) Other steel qualities and thicknesses upon request.
Downloads
Colors and coatings
MyWall profiles can be manufactured in an extensive palette of colors and with a wide range of highly durable coatings, selectable according to the aggressiveness of the building environment.
Architectural modular system
Teczone Kingspan’s new MyWall system offers exceptional technical performance, at an optimized cost, for the execution of architecturally finished metal envelopes.
The MyWall metal profiles incorporate a variety of shapes and rhythms (symmetrical triangular, flattened, asymmetrical triangular and square shapes) and allow the combination of different geometries in the same profile.
The manufacturing system of MyWall profiles allows a high degree of customization, both in terms of the number of corrugations and their geometry and position in the profile.
This geometric flexibility, together with a wide range of available colors and coatings, provides architects, designers and technicians with a high degree of flexibility and creative freedom in the design of metal building envelope.
